Overview of the neatcatch



There is a dedicated website for the catch. Go to neatcatch.co.uk to see more information and the various options of the catch available to purchase.

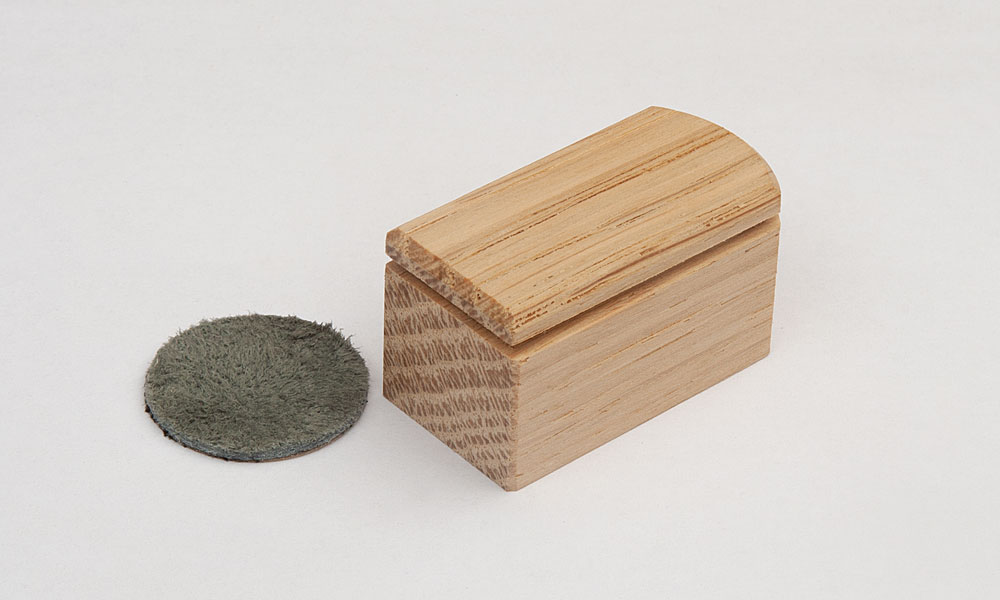

The neatcatch is precision made and uses quality neodymium magnets encased in a wooden block.

Suitable for kitchen doors as well as cabinet doors the neatcatch pulls the door in with a gentle thud.

Because the magnets are covered by wood and leather the door opens with little force (unlike magnet on metal).

The standard neatcatch is strong enough for most applications. However the large neatcatch is available for larger doors.

Although longer in length, the large neatcatch has dimensions almost identical to the height and width of the standard neatcatch.

The neatcatch fulfils the following criteria.

  • No visible magnets.
  • Back to front adjustment (5mm).
  • Superior hold down mechanism (achieved using an m4 bolt rather than woodscrews in slots which tend to loosen over time).
  • A pleasing sound of wood against leather on door closure.
  • A less visible catch (the wooden block blends in with the carcase veneer).

Two cross section computer generated images showing the internal parts of the neatcatch. The right hand image is without the cap.

Dimensions and technical drawings

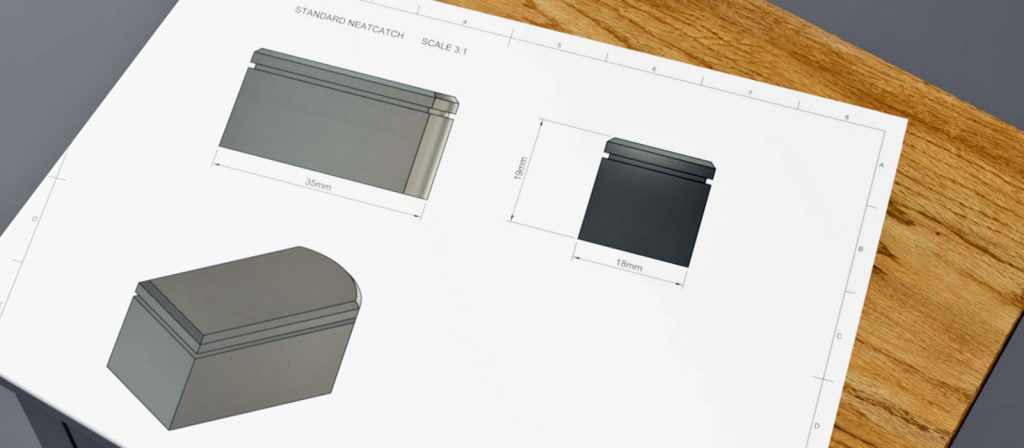

The standard neatcatch nominal dimensions are 18mm wide, 19mm high and 35mm deep

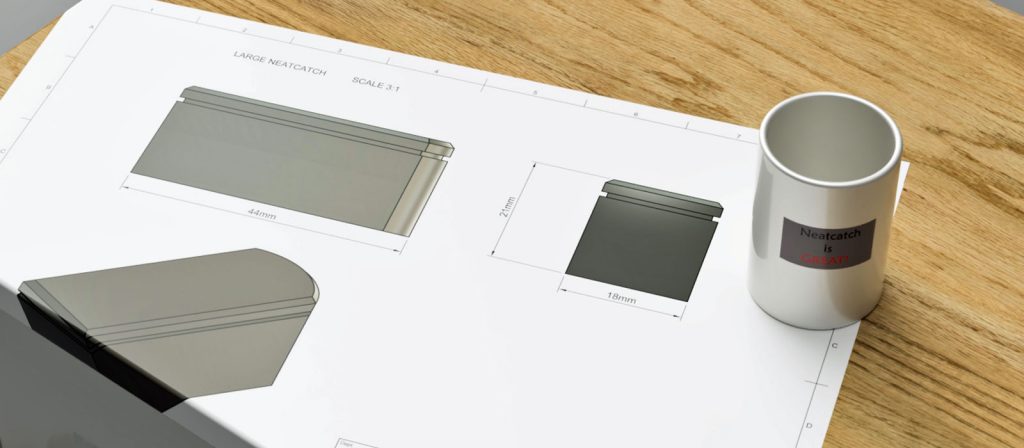

The large neatcatch nominal dimensions are 18mm wide, 21mm high and 44mm deep. The large catch houses a powerful  12mm x 12mm magnet

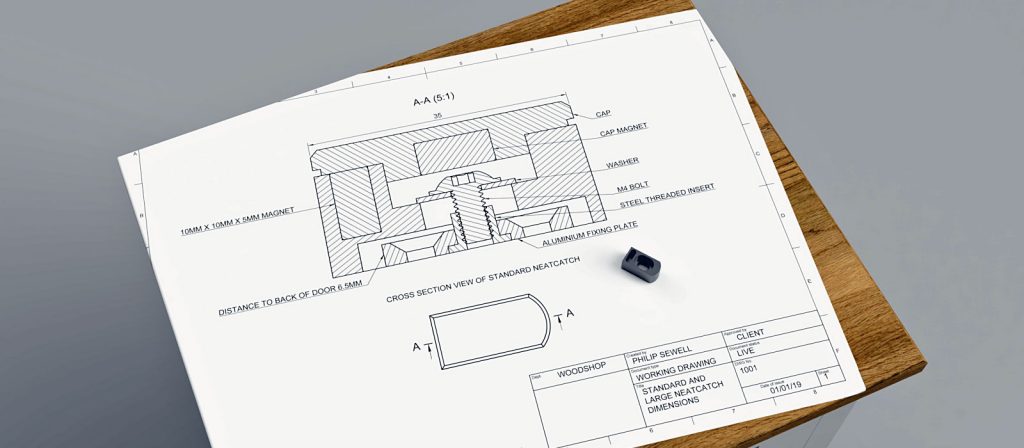

Cross section drawing of the standard neatcatch

Cross section drawing of the large neatcatch

Click on the cabinet to watch an exploded animation of the neatcatch and see how all the bits fit together.
